S8PN Polished Nickel 8" Square Back-to-Back Pull Handle - SQ8X8PN Series

The sharp looking BBHardware "SQ Style" Square Corner Handle gives the clean and traditional look that many designers prefer. This Handle perfectly complements numerous BBHardware Hinge Series' with similar corner styles, such as Geneva, Vienna, Concord, Cardiff, and others. Back-up washers and nylon spacers are included to protect against glass-to-metal contact.

Our offering of quality Pull Handles has grown to over a dozen distinct models in numerous different finishes. There's a handle to complement the décor of virtually any hardware">shower or wardrobe door, and each one is constructed of only the finest materials. Whether you choose a back-to-back or single-sided handle, you can rest assured that it will be easy-to-install, and will serve its purpose beautifully for many years. Custom designs and finishes are also available when you need something special.

• Two Sizes Available 6" and 8" (152 and 203 mm)

• Several Designer Finishes
• Square Corners Make this Handle the Ideal Choice to Match Square Cornered Hinges
• Use 1/4" to 1/2" (6 to 12 mm) Monolithic Tempered Glass

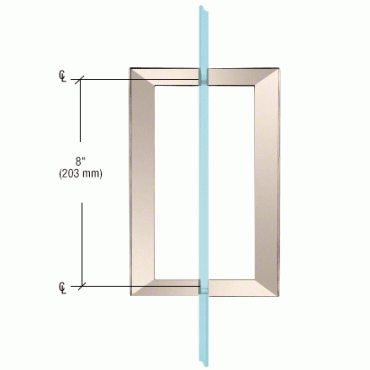

• Hole Spacing:    8" (203 mm) Center-to-Center

• Hole Diameter Required:    1/2" (12 mm)
• Projection From Surface:    2-1/2" (63.5 mm)

SPECIFICATIONS:

Material: 3/4" (19 mm) Brass Tubing

Glass Thickness Range: 1/4" to 1/2" (6 to 12 mm)

Hole Diameter Required: 1/2" (12 mm)

Center-to-Center Hole Spacing: 6" (152 mm); 8" (203 mm)

Custom finishes are available on request.
