Downloadable PDF:  Template-Dimensions

Use Monolithic Tempered Glass

Height: 3-15/16" (100 mm)

Width: 2-1/4" (57 mm)

STANDARD REVERSIBLE PIVOT PIN: Each Vienna Series Hinge contains a Reversible Pivot Pin. One side of the Pin is marked at 90 degree. The opposite side of the Pin is marked 85 degree. Standard Vienna Hinges come with the 90 degree side activated. Pre-Set Models come with the Pin pre-set for 85 degree (5 degree tighter closure into hardware">shower interior). The Pin can be rotated (not flipped upside down) to activate the other side.

Using two hinges with 3/8" glass (10 mm) the hinge will hold up to 100 lbs. (45 kg) with a maximum door width of 34" (864 mm).

Using two hinges with 1/2" glass (12 mm) the hinge will hold up to 100 lbs. (45 kg) with a maximum door width of 32" (813 mm).

Using three hinges with 3/8" glass (10 mm) the hinge will hold up to 130 lbs. (59 kg) with a maximum door width of 34" (864 mm).

Using three hinges with 1/2" glass (12 mm) the hinge will hold up to 130 lbs. (59 kg) with a maximum door width of 32" (813 mm).

SPECIFICATIONS:

Glass Thickness: 3/8" (10 mm) to 1/2" (12 mm) Tempered Safety Glass

Construction: Solid Brass

Hinge Swings: 90 degree in and 90 degree Out

Closing Type: Self-Centering when within 15 degree of closed position.

Cut-Out Required - Except V1E092 which Requires Cut-Out for Door and Two Holes for Fixed Panel

Includes: Gaskets, Screws, and Glass Fabrication Dimensions

Our Shower Door Hinges are designed for residential or hotel hardware">shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from our Shower Door Technical Sales Department. Use only the template included with this hinge. Cut-out dimensions for  hinges may not match those of other brands.

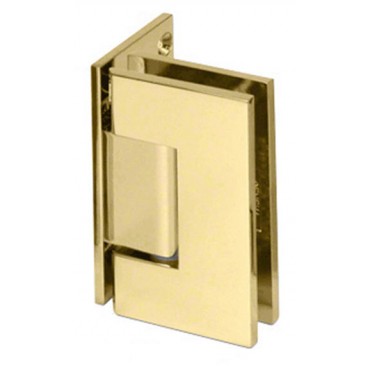

CRL (C.R. Laurence) Vienna V1E044 Type

FHC (Frameless Hardware Co) Venice VEN03 Type
