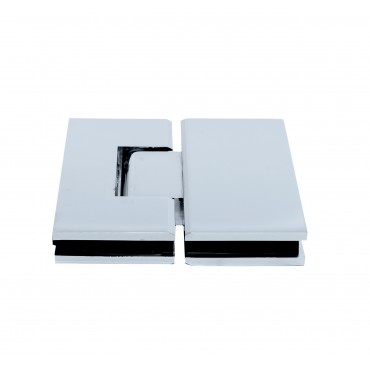

V180CH Chrome Square 180 Degree Heavy Duty Glass-to-Glass Hinge - Vienna V1E180CH Series

Downloadable PDF:  Template-Dimensions

Colors available for our Vennice Series 180 Degree Heavy Duty Hinges:

Brushed Nickel

Polished Brass

Chrome

Matte Black

Satin Brass

Our V180CH BBAHI Vennice Chrome Square 180 Degree Heavy Duty Glass-to-Glass Hinge is the solution for wider, heavier doors that traditional hinges are not strong enough to support. Two strategically placed steel pins inside the hinge provide template options, and satisfy two schools of thought for mounting hardware">shower door hinges. For the safety of "mouse-ears" type cut-outs, the two steel pins should be left in place. This allows the Vienna Hinge to be used with it's own CRL "mouse-ears" cut-out. On the other hand, to enable increased adjustability, the two pins can be removed. This allows the Vienna Hinge to fit it's own CRL rectangular shaped, square cornered cut-out. In some cases, it will also fit competitive rectangular shaped, square cornered cut-outs.

Our BBAHI Vennice Series Hinges are designed for residential or hotel hardware">shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the BBHardware Shower Door Technical Sales Department. Use only the template included with this hinge. Cut-out dimensions for BBHardware hinges may not match those of other brands.

• Accommodates 3/8" to 1/2" (10 to 12 mm) Glass

• Available in Several Beautiful Finishes
• 3 Year Warranty
• 180 Degree Glass-to-Glass Standard Model (Factory Set for Standard Closing Position)
• Use Monolithic Tempered Glass
• Height:    3-15/16" (100 mm)

• Width:    2-1/4" (57 mm)

STANDARD REVERSIBLE PIVOT PIN: Each BBHardware (Vienna Style) Hinge contains a Reversible Pivot Pin. One side of the Pin is marked at 90 degree. The opposite side of the Pin is marked 85 degree. Standard BBHardware (Vienna Style) Hinges come with the 90 degree side activated. Pre-Set Models come with the Pin pre-set for 85 degree (5 degree tighter closure into hardware">shower interior). The Pin can be rotated (not flipped upside down) to activate the other side.

CUSTOM PIVOT PIN: Custom Pivot Pins are available to accommodate "off-angle" installations. As an example, you may encounter a wall that will not meet your door at 90 degree. If the standard 5 degree Pivot Pin contained in the hinge does not assist in closing the door to the position desired, you may specify the angle needed for a Custom Pivot Pin (up to 45 degree).

Using two hinges with 3/8" to 1/2" glass (10 to 12 mm) the hinge will hold up to 110 lbs. (50 kg) with a maximum door width of 36" (914 mm).

Using three hinges with 3/8" to 1/2" glass (10 to 12 mm) the hinge will hold up to 140 lbs. (63 kg) with a maximum door width of 36" (914 mm).

SPECIFICATIONS:

Glass Thickness: 3/8" (10 mm) to 1/2" (12 mm) Tempered Safety Glass

Construction: Solid Brass

Hinge Swings: 90 degree In and 90 degree Out

Closing Type: Self-Centering when within 15 degree of closed position.

Cut-Out Required - Except V1E092 which Requires Cut-Out for Door and Two Holes for Fixed Panel

Includes: Gaskets, Screws, and Glass Fabrication Dimensions

Custom finishes are available on request.

C.R. Laurence Vienna V1E180 Series

FHC-USA Venice VEN180 Series
